Combo Roof a comprehensive system comprising of waterproofing thermal insulation and finishing for the roof. The system is also approved by various authorities like Dubai Municipality. Sharjah Municipality Sharjah water and Electricity authority and Trakhees, Combo Roof system is an assured solution for your roof.
APPLICATION PROCEDURE
- Cleaning the Roof
- Covering the Parapet if required and fixed all the utilities on roof like, drain outlet etc..

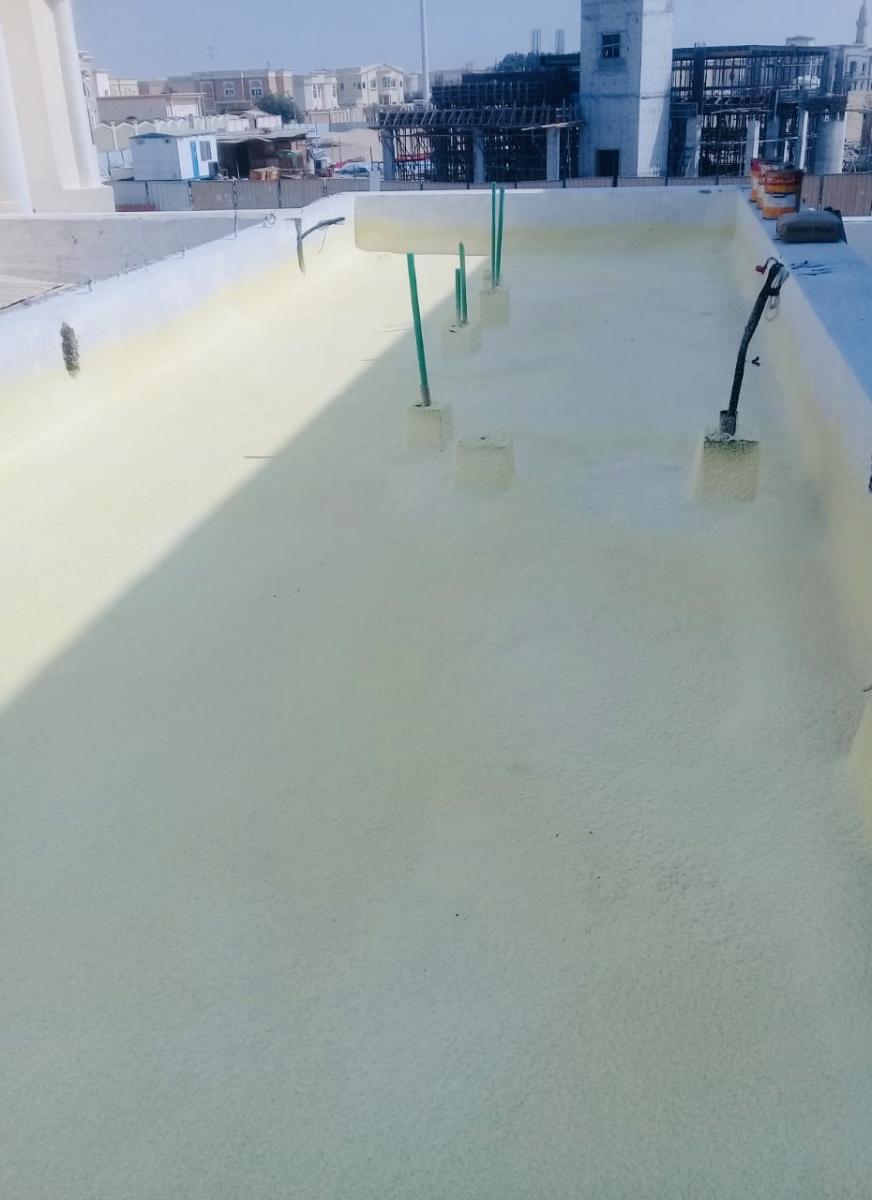

- Application of Polyurthane Spray as per Authorities requirements

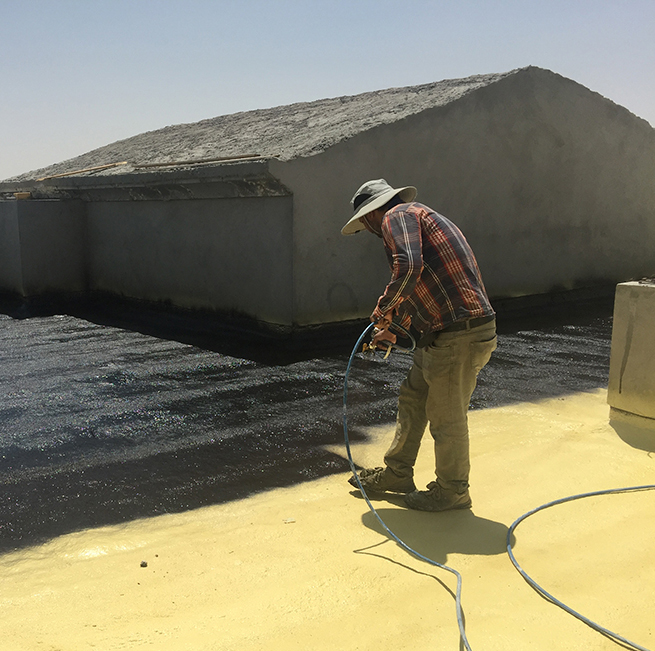

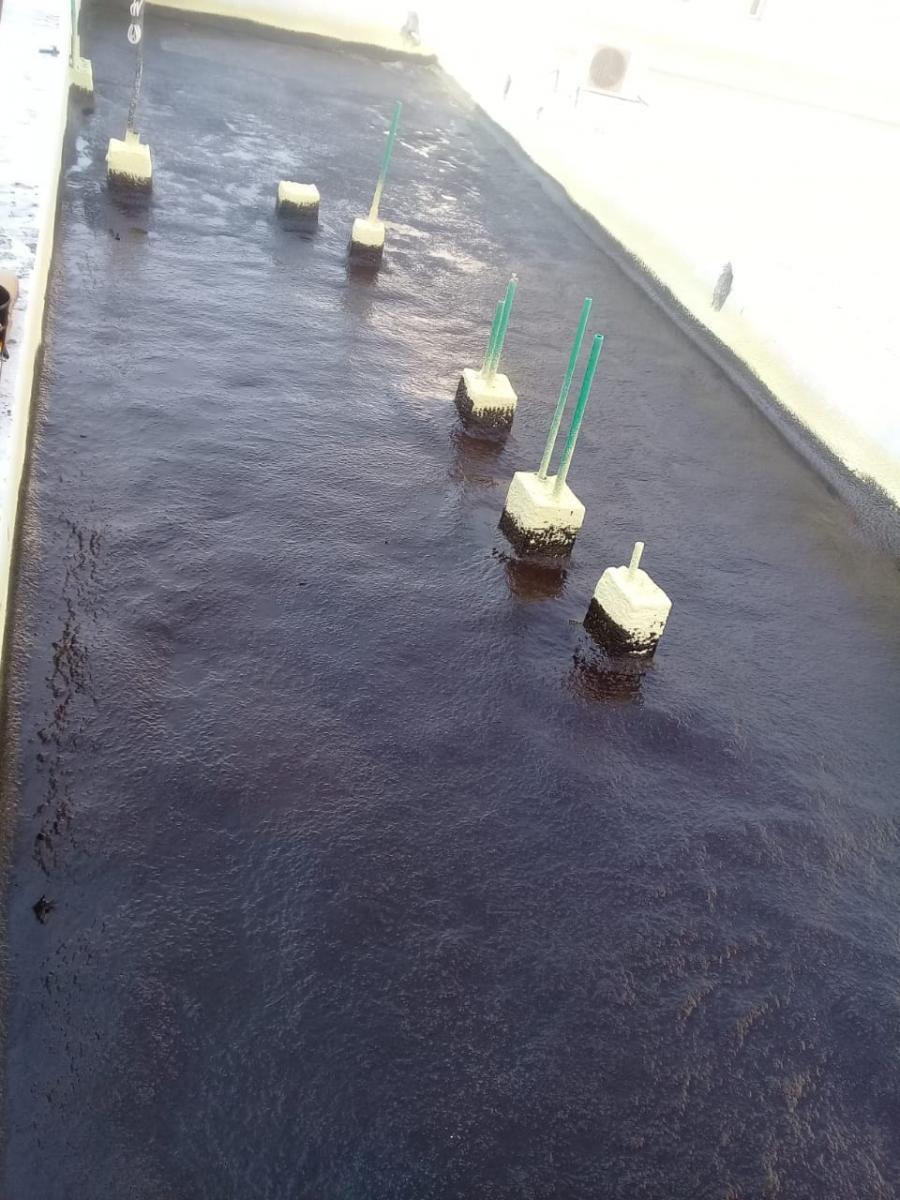

- Brush /Roller Apply Rubberized coating on above the entire RU Foam

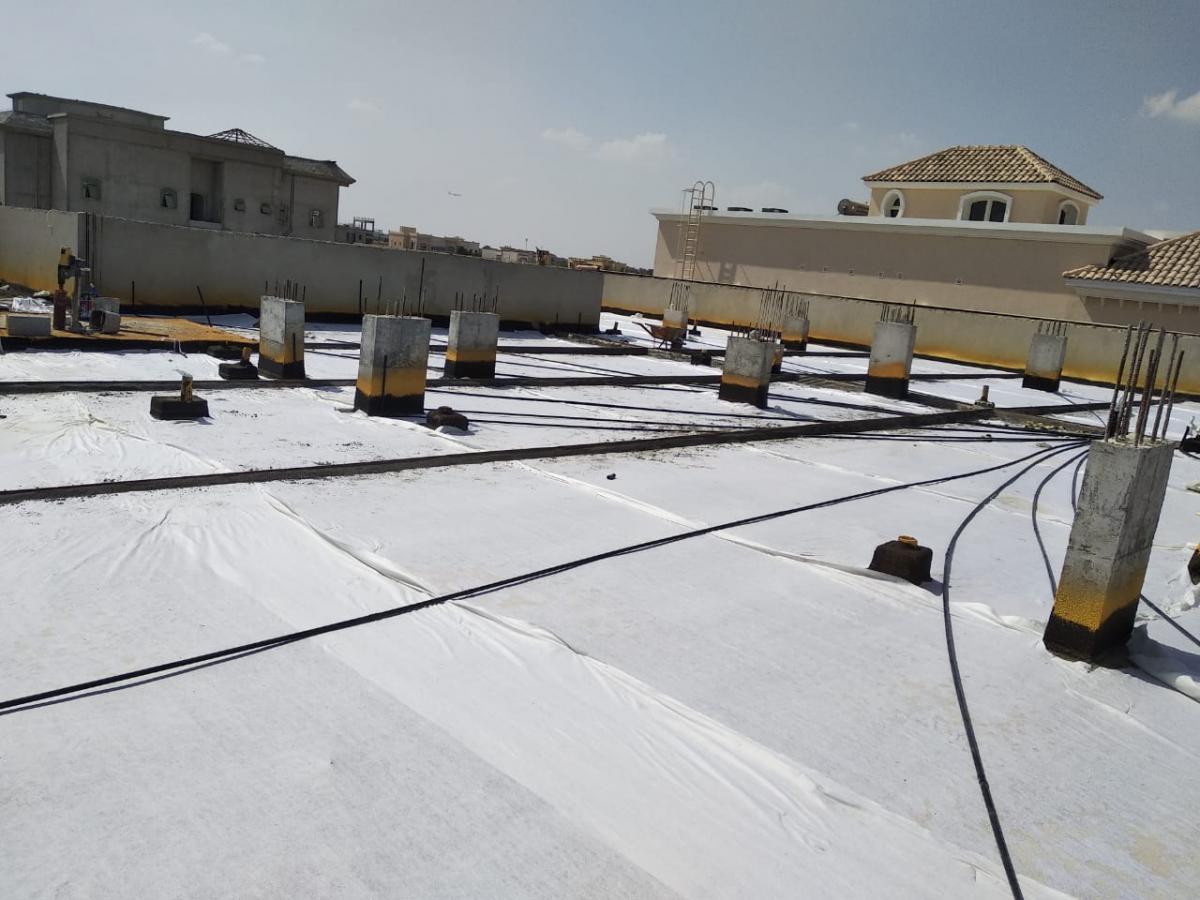

- Loosely laying geotextile separation layer

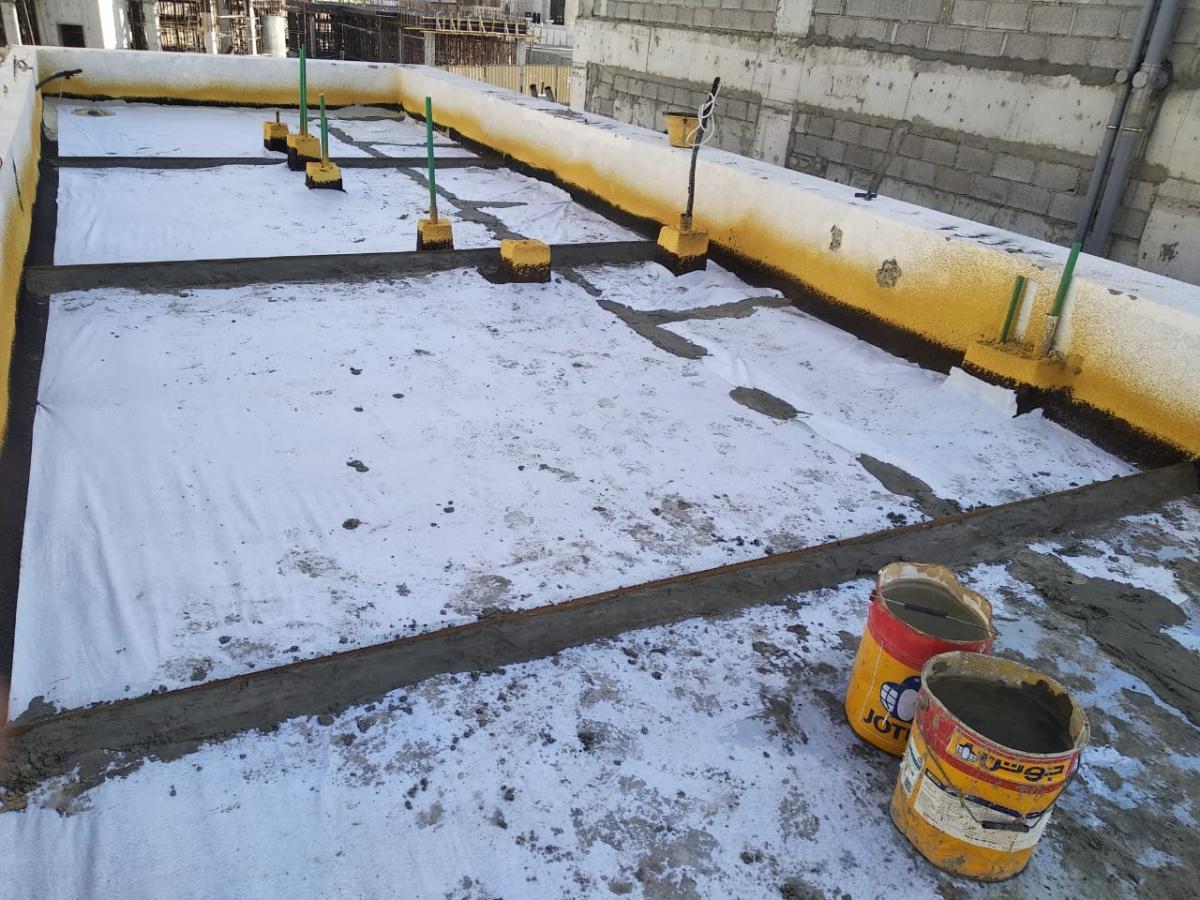

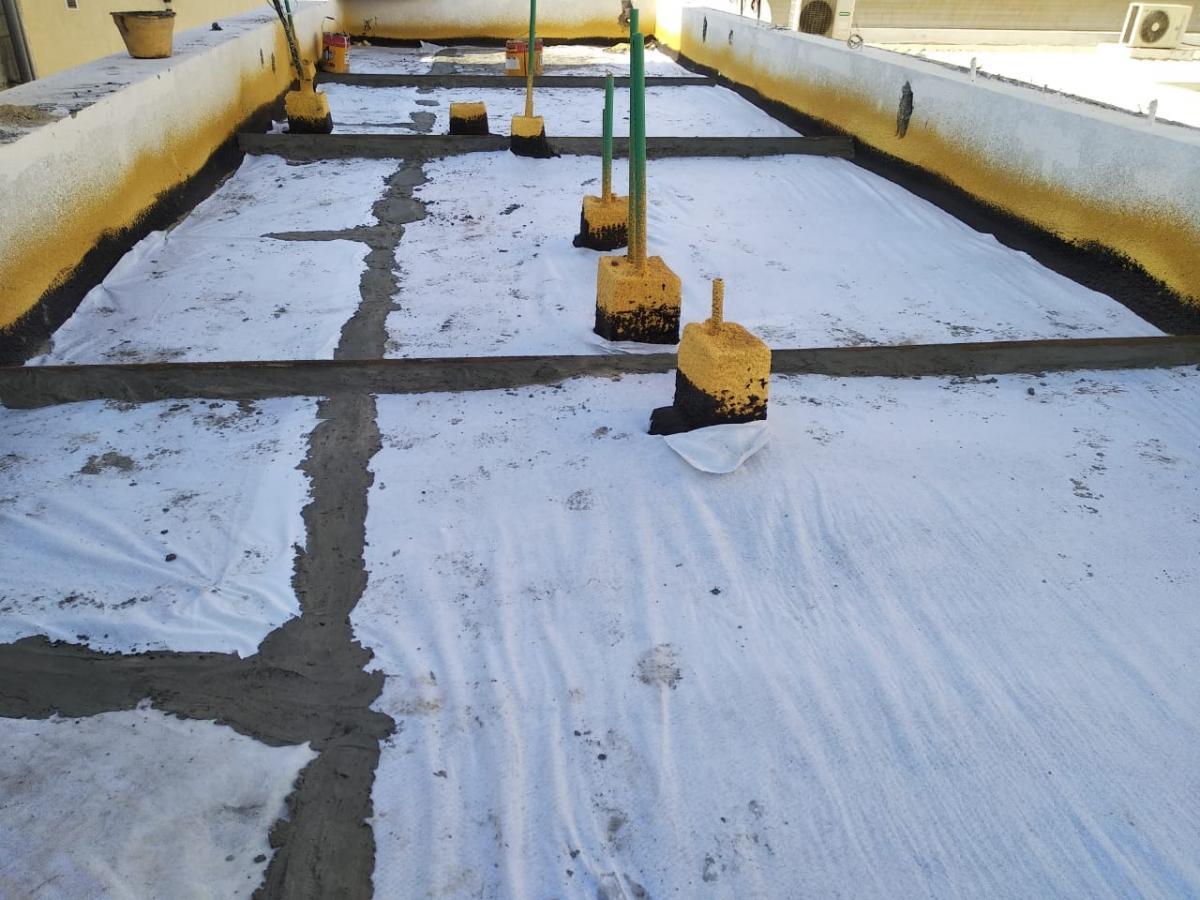

- Fix ridges in panel to maintain slope from the top to drain outlet with using cement sand mortar

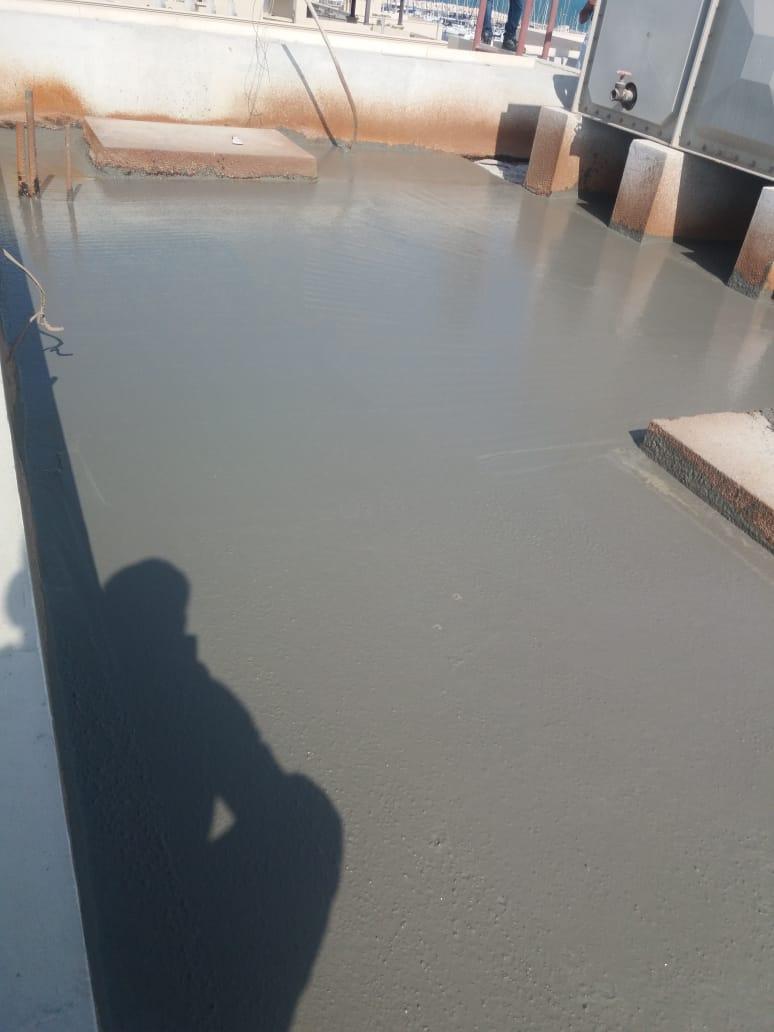

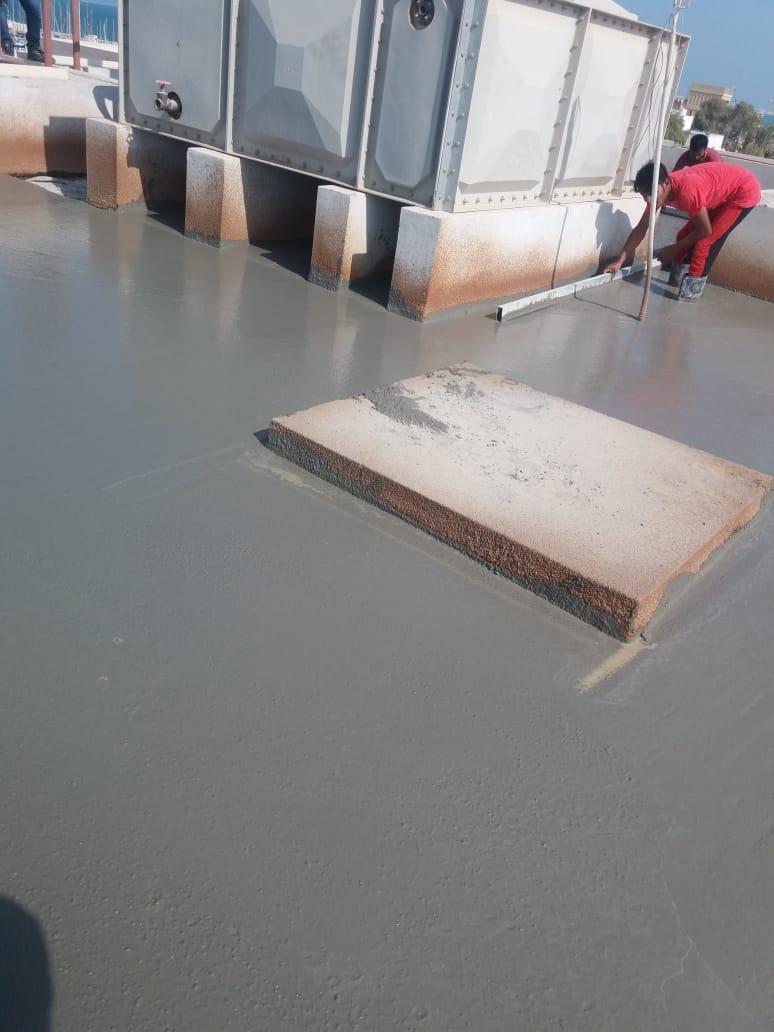

- Costing GGBS Screed to slope and same finishing with power float

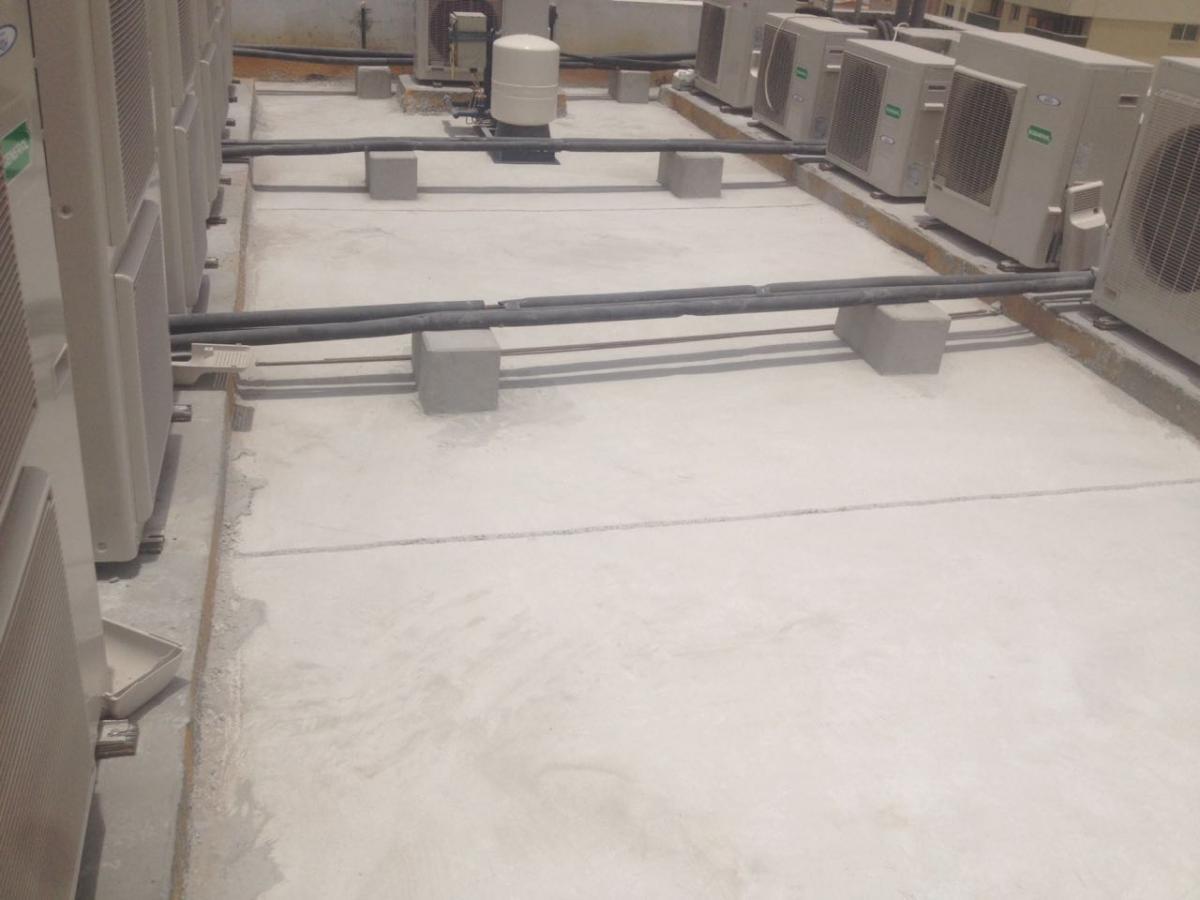

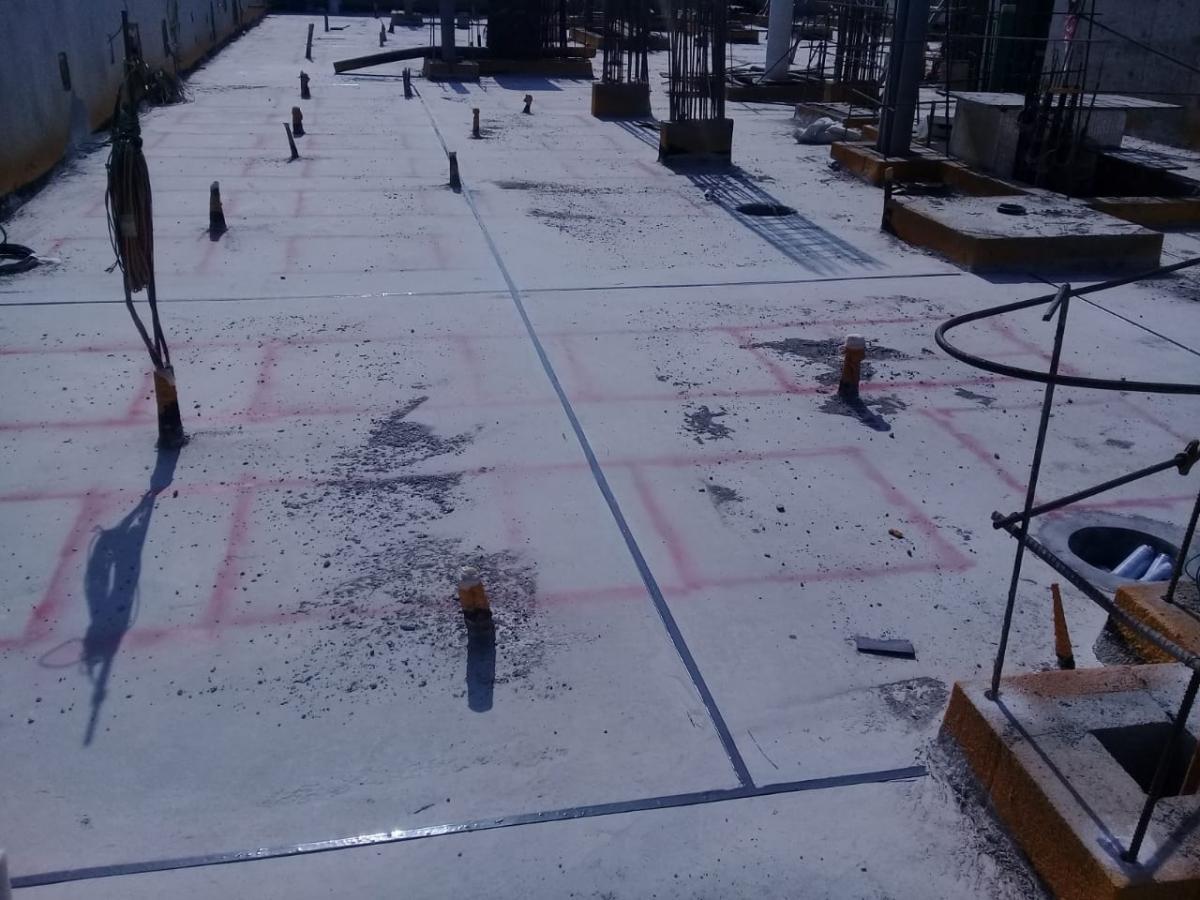

- Groove cutting with heavy duty grinder and filling the RU Base sealant with all the joints in screed

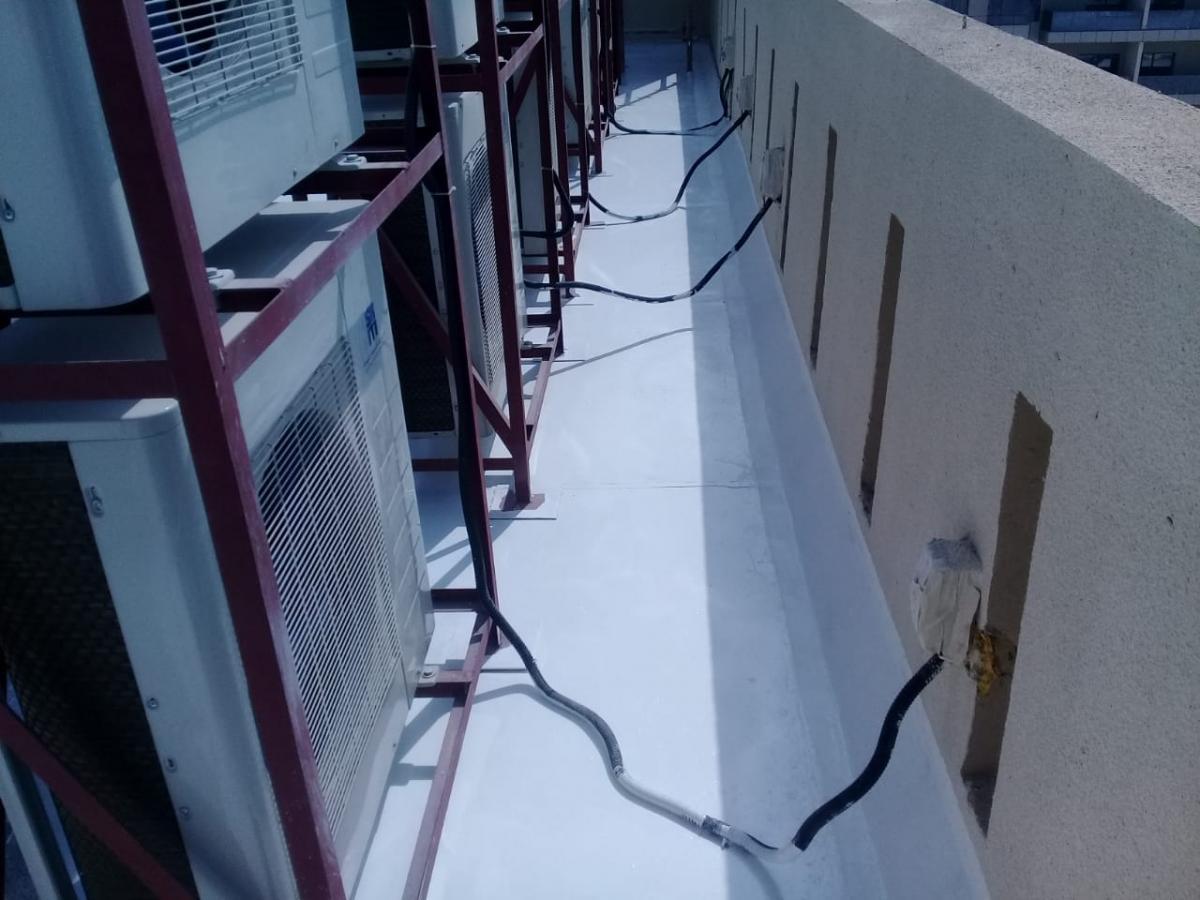

- Fix all the angle fillets along with parapetrnechanical duct openings and pre utility up stands
- Fix canvas cloth as a re-enforcement all over the angle fillets and up stand

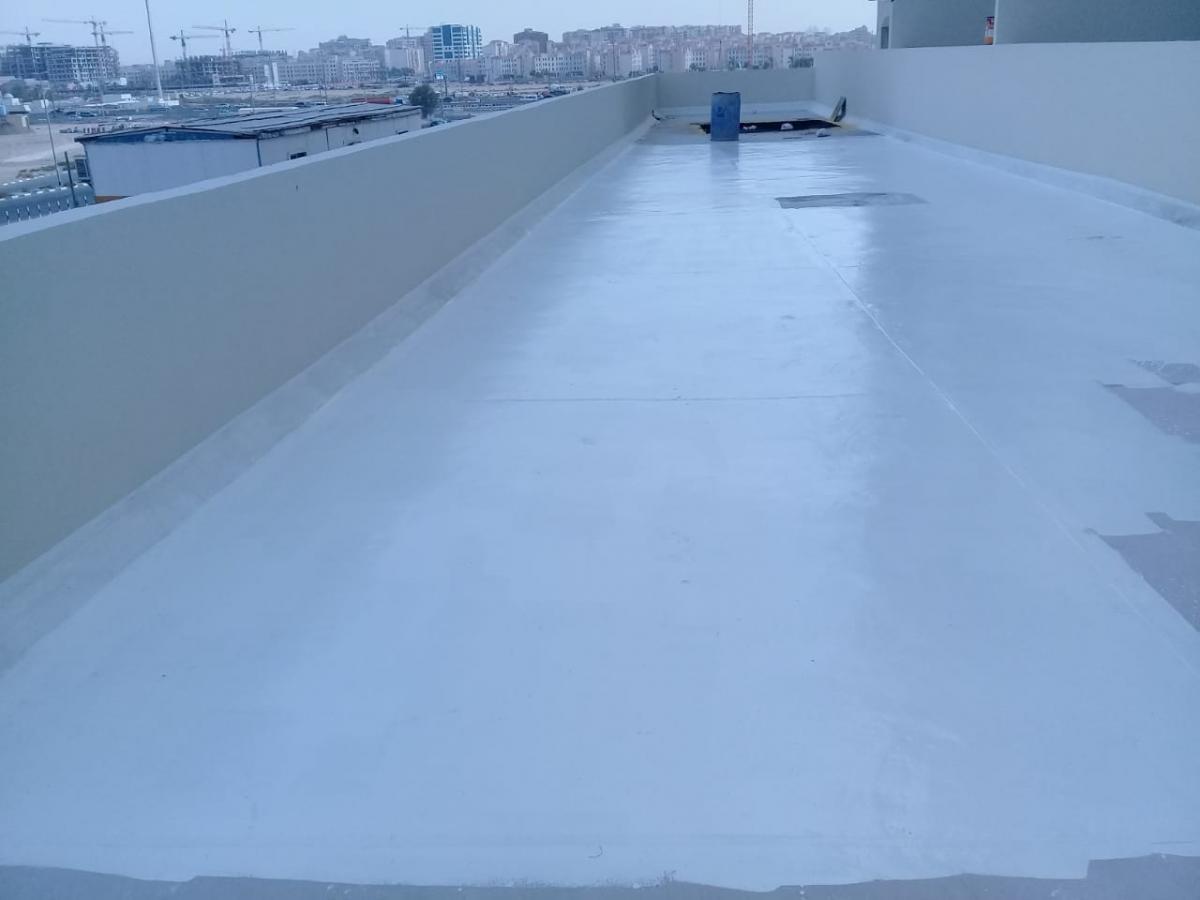

- Apply Polyurthane base final coat above the screed
BENEFITS OF COMBO ROOF SYSTEM
- Joint free insulation & waterproofing with 25 years manufacturers Guarantee.
- Load Bearing Capacity up to 21/2 Tons per Sq.Mtr.
- Single submittal & approval for the entire system.
- Roof tiles not required.
- Fully mechanized time saving installation procedures.
- Ability & capacity to undertake fast track projects.
- Easy repair & maintenance.
- Multilayer Waterproofing.
- Lower electricity consumption due to better insulation.
- Thermal shock resistant roof
- Warranty : 25 Years
